1- Department of Civil Engineering, Sahand University of Technology, Tabriz
2- Professor, Department of Civil Engineering-Marine Structures, Sahand University of Technology, Tabriz, Iran.
3- Assistant professor, Faculty of Engineering, Department of Civil Engineering, University of Hormozgan, Bandar abbas
2- Professor, Department of Civil Engineering-Marine Structures, Sahand University of Technology, Tabriz, Iran.
3- Assistant professor, Faculty of Engineering, Department of Civil Engineering, University of Hormozgan, Bandar abbas
Abstract: (416 Views)

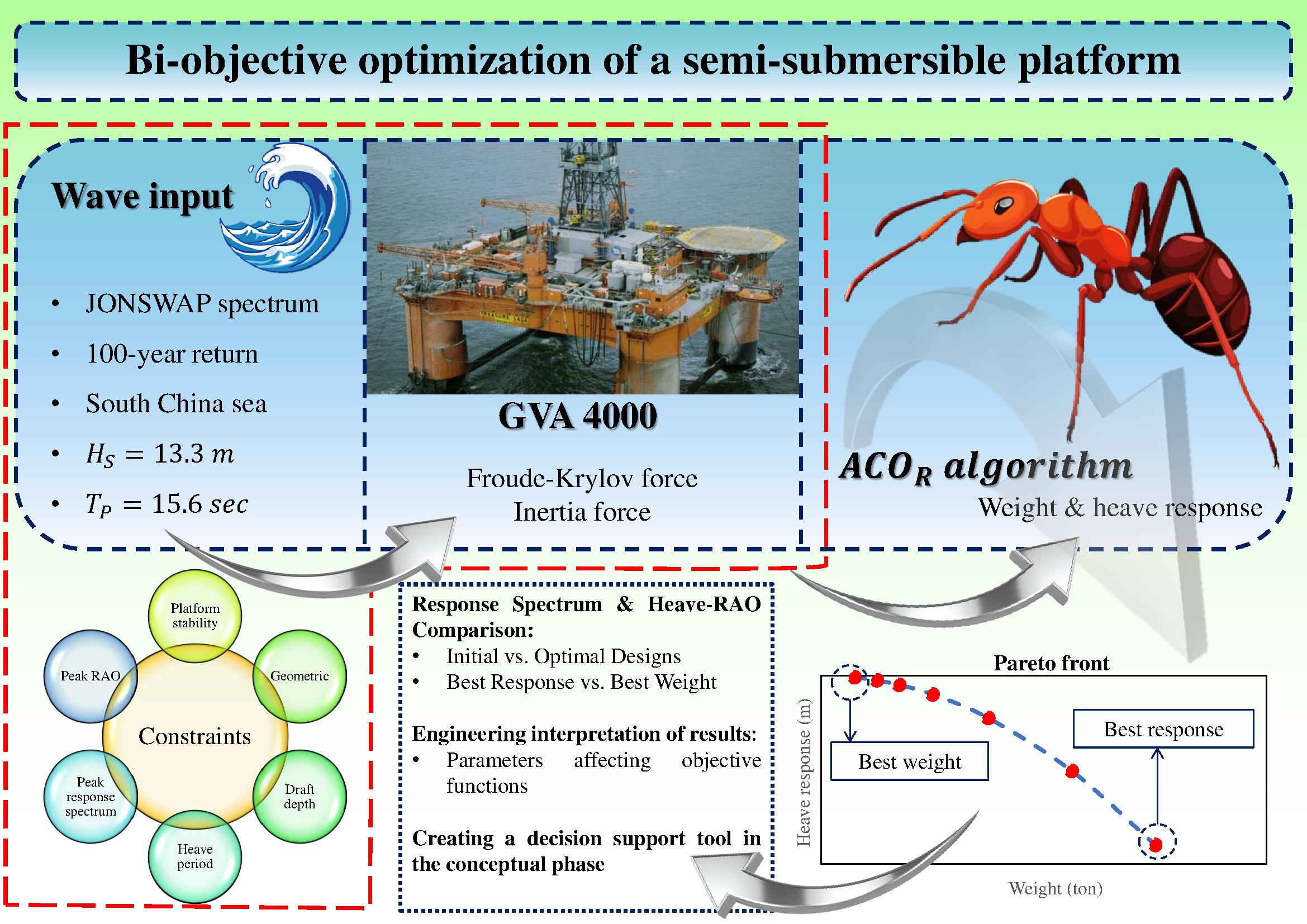

Improving the heave response of semi-submersible platforms remains a critical and complex challenge in the offshore industry. Resonance of these motions can cause vital consequences in marine operations, particularly in drilling processes, such as disturbance in equipment action, increased stresses on the risers, and the probability of damage to the mooring systems. Hence, this study presents an innovative method that is a cost-effective and practical approach for bi-objective optimization of the total weight of the platform body and heave motion of a typical GVA4000 platform under 100-year wave conditions in the South China Sea. To ensure the feasibility and applicability of the optimized design, key restraints such as platform stability, geometric constraints, draft depth, natural heave period, and peak response spectrum were examined in order that the final design keeps its function, in addition to being realistic and applicable. For this purpose, the Ant Colony Optimization for continuous domain (ACOR) algorithm was used to minimize both the total weight of the structural platform and the heave response. The validity of the developed model was confirmed through the comparison with benchmark heave motion analyses. The results indicated that this optimization algorithm significantly enhances platform response while simultaneously optimizing the total weight of the platform body. This improvement in the structural performance and efficiency of semi-submersible platforms can play a significant role in the safety, reliability of semi-submersible platforms under harsh environmental conditions.
Type of Study: Research Paper |
Subject:
Offshore Hydrodynamic
Received: 2025/05/24 | Accepted: 2025/10/1
Received: 2025/05/24 | Accepted: 2025/10/1
فایل صوتی چکیده مقاله [MP3 2567 KB] (30 Download)
References
1. Shu, H., Yao, A., Ma, K.-T., Ma, W., and Miller, J., API RP 2SK 4th edition-an updated stationkeeping standard for the global offshore environment, in Offshore Technology Conference, 2018: OTC, p. D011S004R001. [DOI:10.4043/29024-MS]
2. Emami, A. and Karimirad, M., "Further development of offshore floating solar and its design requirements," Marine Structures, vol. 100, p. 103730, 2025. [DOI:10.1016/j.marstruc.2024.103730]
3. Mohammadi, P., Emami, A., Gharabaghi, A. R. M., Tahmooresi, S., Chenaghlou, M. R., and Ghavifekr, H. B., "Evaluation of RAOs of a semi-submersible platform using field measurements: A full-scale model in Caspian sea environmental conditions," Marine Structures, vol. 91, p. 103467, 2023. [DOI:10.1016/j.marstruc.2023.103467]
4. DNV, G., "DNV-OS-J101-Design of offshore wind turbine structures, ," DNV GL, 2004.
5. Ma, R., Bi, K., and Hao, H., "Mitigation of heave response of semi-submersible platform (SSP) using tuned heave plate inerter (THPI)," Engineering Structures, vol. 177, pp. 357-373, 2018. [DOI:10.1016/j.engstruct.2018.09.085]
6. Liu, K. and Ou, J., "A novel tuned heave plate system for heave motion suppression and energy harvesting on semi-submersible platforms," Science China Technological Sciences, vol. 59, no. 6, pp. 897-912, 2016. [DOI:10.1007/s11431-016-6055-9]
7. Li, Y., Shi, Z., Yang, H., Xie, D., and Chen, Y., "Motion responses optimal design of semi-submersible platform equipped with a hollow moonpool based on CFD," Ocean Engineering, vol. 311, p. 119010, 2024. [DOI:10.1016/j.oceaneng.2024.119010]
8. Emami, A. and Gharabaghi, A. R. M., "Improvement of the heave motion of a semi-submersible platform with damping sheets subjected to sea waves," Journal Of Marine Engineering, vol. 19, no. 38, pp. 62-76, 2023. [DOI:10.61186/marineeng.19.38.62]
9. Emami, A., Pourjafari, N., and Parghi, A., "Effect of porous SBR composites on mitigating the heave motion response of a semi-submersible platform," Ocean Engineering, vol. 295, p. 116856, 2024. [DOI:10.1016/j.oceaneng.2024.116856]
10. Chandrasekaran, S. and Das, A. K., Heave Minimization of Semisubmersible Using Passive Control System, in ISOPE International Ocean and Polar Engineering Conference, 2025: ISOPE, pp. ISOPE-I-25-139.
11. Emami, A. and Gharabaghi, A. R. M., "Application of poroelastic layers in a semi-submersible platform: Devising an efficient heave motion response reduction method," Ocean engineering, vol. 201, p. 107148, 2020. [DOI:10.1016/j.oceaneng.2020.107148]
12. Mathew, T. V., "Genetic algorithm," Report submitted at IIT Bombay, vol. 53, pp. 18-19, 2012.
13. Wang, D., Tan, D., and Liu, L., "Particle swarm optimization algorithm: an overview," Soft computing, vol. 22, no. 2, pp. 387-408, 2018. [DOI:10.1007/s00500-016-2474-6]
14. Fister, I., Fister Jr, I., Yang, X.-S., and Brest, J., "A comprehensive review of firefly algorithms," Swarm and evolutionary computation, vol. 13, pp. 34-46, 2013. [DOI:10.1016/j.swevo.2013.06.001]
15. Socha, K. and Dorigo, M., "Ant colony optimization for continuous domains," European journal of operational research, vol. 185, no. 3, pp. 1155-1173, 2008. [DOI:10.1016/j.ejor.2006.06.046]
16. Clauss, G. n. F., Schmittner, C., and Stutz, K., Time-domain investigation of a semisubmersible in rogue waves, in International Conference on Offshore Mechanics and Arctic Engineering, 2002, vol. 36126, pp. 509-516. [DOI:10.1115/OMAE2002-28450]
17. Emami, A. and Mostafa Gharabaghi, A. R., "Introducing a simple and reliable multi-objective optimization method to estimate hull dimensions of a semi-submersible rig," Journal Of Marine Engineering, vol. 16, no. 31, pp. 29-40, 2020. [DOI:10.29252/marineeng.16.31.29]
18. Patel, M. H., Dynamics of offshore structures. Butterworth-Heinemann, 2013.
19. White, F.1994, Fluid Mechanics, McGraw-Hill Inc, ed: USA.
20. Xue, W., "Design, numerical modelling and analysis of a spar floater supporting the DTU 10MW wind turbine," NTNU, 2016.
21. Veritas, N., Environmental conditions and environmental loads. Det Norske Veritas Oslo, Norway, 2000.
22. Gallala, J. R. 2013. Hull Dimensions of a Semi-Submersible Rig: A Parametric Optimization Approach, Institutt for marin teknikk.
23. Oo, K. M. (1974). The design of semi-submersibles for minimum vertical motion (Doctoral dissertation, University of Glasgow).
